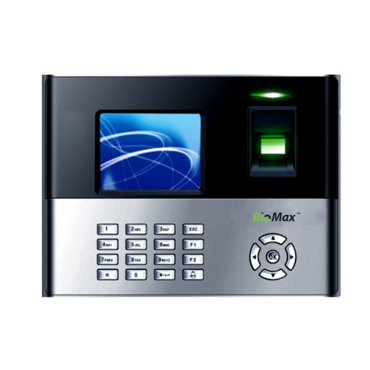

X-990
Code : X-990| Technical Specification | ||
| Standalone Fingerprint Time & Attendance and Access Control System | ||
|
Storage capacity |
Fingerprints templates | 3000 |
| Card Storage | 3000 | |
| Transaction storage | 1,00,000 | |
| Card reader | Inbuilt proximity card reader (optional Mifare) | |
| CPU | 800 Mhz 32 bit Microprocessor | |
| Biometric | Fingerprint sensor | 500 DPI Optical sensor |
| FAR | <=0.0001% | |
| FRR | <=1% | |
| Identification speed | <0.5 sec | |
| Algorithm Ver | 10 | |
| Audio/Visual | Display | 3" Color TFT |
| Keypad | Yes | |
| LED Indicator | Green/Red | |
| Schedule Bell/Speaker | Mini Speaker | |
| Communication | Communication | TCP/IP, USB, ( Optional : Wifi, GPRS, GPRS+ GPS) |
| Push data | yes (support both static IP and domain server) | |
| Standard features | work code,SMS,DLST, Self service query, Status Switch | |
| Power & environment | Power Supply | DC 12 V : 1.5 Amp |
| Operating Temperature | 0°C to 45°C | |
| Operating Humidity | 20% -80% | |
| Dimension | 210 x 157 x 40 mm | |
| Access control | Wiegand | In & Out both 26 or 34 bit (With or without site code) |
| Relay | 12 V relay for lock EM lock, Bolt Lock or Strike lock | |
| Support Fire Alarm | Yes | |
| Door Sensor | Yes | |
| Anti Passback | Yes | |
| Door Bell | Yes | |
| Exit Readers | Support exit readers | 101 HE , FR 1200, Push Button, KR500, KR503,Notouch |
| Optional | Battery | yes |
| Card readers | Mifare | |
| Communication | Wifi/GPRS | |
| Sensor | Mifare/HID Prox/HID Iclass | |
| Compatibility | Compatible with Multi Door controllers via weigand | |
| External Speaker output available (Optional) | ||
| External Bulb output available (Optional) | ||
| Support External Printer | ||
| Compatible Software and SDK | Smart office suite desktop and web | |
| SDK for desktop applications | ||
| Web based Device Manager / ePush server using Push data. Helps developers & integrators | ||
| Supports 3rd Party Payroll / HRMS / ERP and Other applications | ||
| Major Applications | Time & Attendance , Canteen management, School attendance,Production Management, Gym & clubs | |
