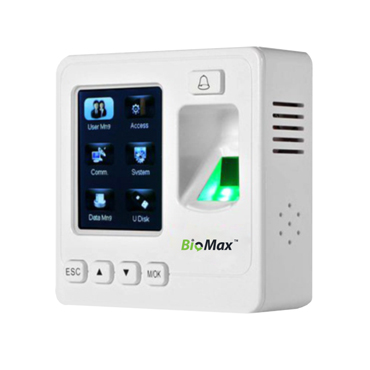

SF 100
Code : SF 100
|
Technical Specification |
||
|
IP based Fingerprint Time Attendance and Access Control System |
||
| Storage Capacity | Fingerprint Templates | 1500 |
| Transaction Storage | 80000 | |
| Card Capacity | 5000 | |
| Card Reader | Yes | |
| Biometric | Fingerprint Sensor | 500 DPI Optical Sensor |
| FAR | ||
| FRR | ||
| Identification Speed | ||
| VX 10.0 | ||
| Audio/Visual | Display | 2.8” Color TFT |
| Keypad | 4 Function keys | |
| LED Indicator | Green/Red | |
| Schedule Bell/Speaker | Mini Speaker | |
| Communication | Communication | USB-host , TCP/ IP, RS 485 |
| Push data | NA | |
| Power & Environment | Power Supply | 12 V DC, 1.5 Amps |
| Operating Temperature | 0°C to 45°C | |
|
|
Operating Humidity | 20%-80% |
| Dimension | 90 x 90 x 34mm | |
| Access Control | Wiegand | In & Out |
| Relay | 12 V relay for lock EM lock | |
| Support Fire Alarm | NO | |
|
|
Door Sensor | Yes |
|
|
Anti Passback | NO |
| Door Bell | Yes | |
| Exit Readers | Support exit readers | KR500 , Door Sensors,Alarm ,Door Bell ,Push Button |
| Optional | Battery | NO |
| Card readers | NO | |
| Communication | NO | |
| Dual Mode | NO | |
| Compatible Software & SDK | Smart office suite desktop |
|
| Major Applications | Time & Attendance , Canteen management, School attendance,Production Management, Gym & clubs |
|
